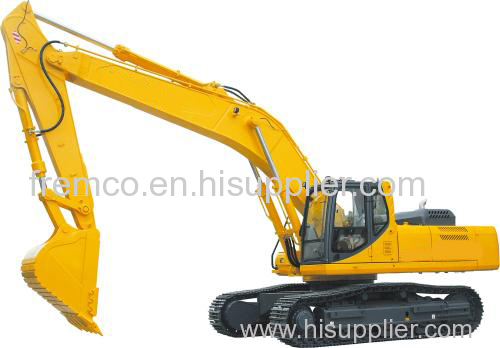

Excavator Price In Pakistan 24 Ton FE240.8 manufacturer from China JINING FAR EAST ELECTRO MACHANICAL EQUIPMENT

Product Detail

Model No.: FE240.8

Production Capacity: 100 sets/month

Delivery Date: 15 days after received your...

Weight: 20.9

Engine Model: CUMMINS B5.9-C

Means of Transport: Ocean

Packing: nude package

Brand Name: FREMCO

Bucekt capacity(m3): 0.8-0.93

Power(kw/r/min): 112/1950

0.8-0.93m3 Excavator Price For Sale
manufacturer of excavator
China crawler excavator

FE240.8 excavator for sale

Model	FE240.8
Weight	23.6
Bucekt capacity(m3)	1-1.2
Engine Model		CUMMINS B5.9-C
Power(kw/r/min)		133/2000
Fuel Tank capacity(L)	350
Tracking speed(km/h)	5.2/3.5
turing speed(r/min)	11.1
Climbing ability(%)	70
bucket digging force(KN) ISO	159
Ground Pressure(KPa)	48.6
Hydrauli Pump Model	K3V112DT
Maximum Flow(L/min)	226*2
Operation Pressure(MPa)	34.3
Oil Tank Capacity(L)	246
A-Overall Length(mm)	9740
B-Overall Width(mm)	2980
C-Overall Height(Arm top)(mm)	3190
D-Overall Hight(CAB top)(mm)	3120
E-Loading Weight distance from ground(mm)	1065
F-Minimum Distance (mm)	442
G-End turning radius(mm)	2810
H-Track shoe length on ground(mm)	3640
J-track shoe assy length(mm)	4450
K-track distance(mm)	2380
L-track shoe assy width(mm)	2980
M-track shoe wideth(mm)	600
N-turning platform width(mm)	2700
O-Maximum digginig height(mm)	9310
P-Maximum unLoading Height(mm)	6440
Q-Maximum digging depth(mm)	6875
R-Maxium Vertical digging depth(mm)	5860
S-Maximum digging depth for transverse plane 2.5 m (mm)	6680
T-Maximum diging distance	10170
U-Maximum digging distance at horizontal plane(mm)	9990
V-Minimum Turning Radius(mm)	3975
W-Maximum height at minimum turning radius.(mm)	7775
X-The distance from turning center to back tail end(mm)	2810
Z-Load weight height(mm)	2120
A1-Ground distance(On transportation)(mm)	5165
Bucket dipper distance (mm)	3050
Arm length(mm)	5850
